# 'Search' tab
For general information about the search, refer to the chapter 'Search' work area.
The chapter Search entries explains how to run a search and view the search results.
# Filters
ELO iSearch offers the option of adding filters. These filters can be used to refine the search.

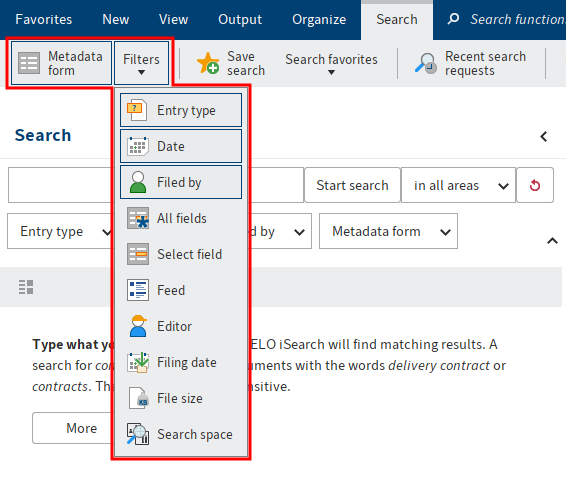

You can access the filters under Ribbon > Search.
ELO iSearch provides the following filters:
- Metadata form: Filters the search by the selected metadata form.
- Entry type: Filters the search by the selected entry type (e.g. folder, image document, Word document).
- Date: Filters the search by the selected document date.
- Filed by: Filters the search by the user that filed the entries.
- All fields: Enables the user to search in all fields.
- Select field: Enables the user to search a field in a metadata form. You can select multiple fields in a form by holding down the CTRL key.
- Feed: Enables the user to search posts and hashtags within the ELO feed.

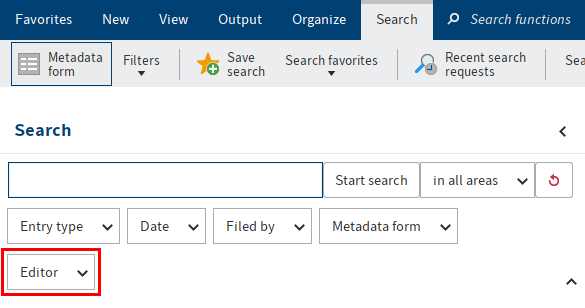

- Editor: Filters the search by the user entered as the editor in the Metadata dialog box.
- Filing date: Filters the search by the selected filing date.
- File size: Filters the search by the selected file size.
- Search spaces: Enables you to run a search in a selected space.
# Enable/disable filter
Click to enable or disable the filter. You will recognize an active filter based on the button's darker color. As soon as you have enabled a filter, the corresponding field appears below the search field.
Click the arrow icon to the right of the field to open a drop-down menu for selecting options.
The selection options vary depending on the filter.
The selected setting appears in the filter field.
The filter becomes active when you start a search.
Alternative: Select Reset search to filter the search results for a search that has already run.
# Combine filters

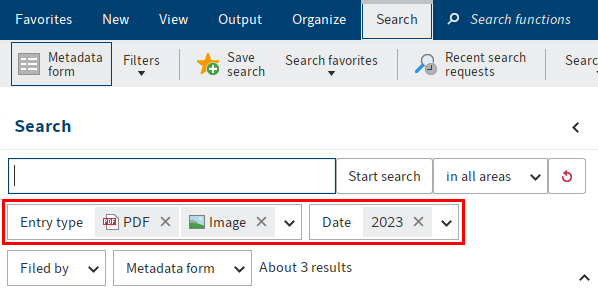

You can combine filters.
- Multiple filters: By combining different filters, you can narrow down the search results based on multiple criteria. This allows you to create precise search requests.
- Multiple filters of one type: Use multiple filters of the same type to set more advanced filters. For example, multiple Entry type filters allow you to perform a search filtered by multiple entry types.
# Negate filters
You can set filters to exclude specific values.

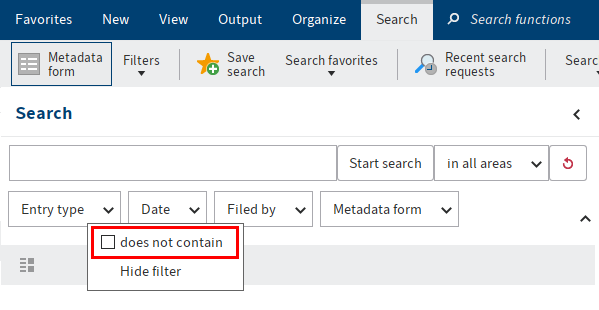

Right-click the filter field to open the context menu. In the context menu, enable the option does not contain.
The filter is now in is not mode.
# Remove filters

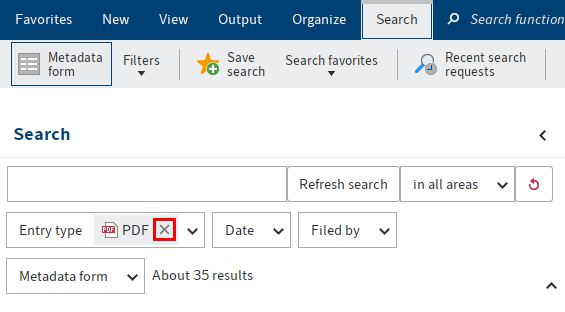

Use the X icon next to the selected filter value to remove it.

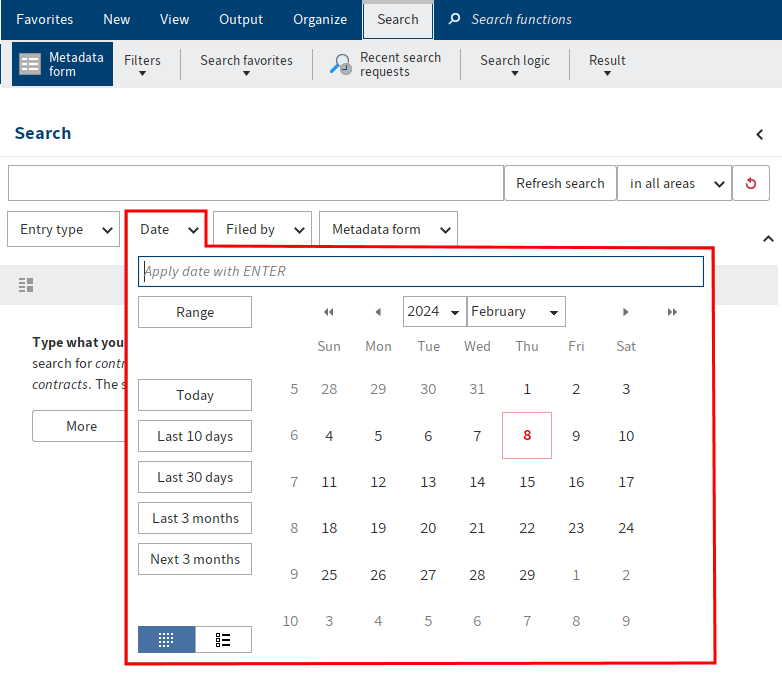

# Filter with date
Use the Date and Filing date filters to filter your search by a specific date or period. Both filters apply the same principle.
This type of filter offers the following options:
Input field: To select a specific date, click the corresponding date in the calendar.
Alternative 1: Enter the date manually in the input field. The following pattern is recommended: MM/DD/YYYY.
Alternative 2: Enter the period manually in the input field. The following rules apply:
Past: If you enter a minus sign and a number, the corresponding period in the past is selected.
Future: If you enter a plus sign and a number, the corresponding period in the future is selected.
Months: If you add an
mto the number value, the period is calculated in months instead of days.Examples
For example, if you enter the value
-14, the filter applies the setting Last 14 days.In contrast, if you enter the value
-6m, the Last 6 months setting is applied.
Range: Selecting Range opens two additional input fields (from and to). Use these fields to define a period of time. Manually enter the start and end date or select them using the calendar.
Today: Select Today to automatically select the current date.
Last 10 days: Selecting Last 10 days automatically sets the period to the last 10 days.
Last 30 days: Selecting Last 30 days automatically sets the period to the last 30 days.
Last 3 months: Selecting Last 3 months automatically sets the period to the last 3 months.
Show calendar (small calendar icon): Selecting Show calendar opens a calendar in the middle of the drop-down menu.
Show list of years (list icon): Selecting the Show list of years button opens a list of years in the middle of the drop-down menu. To select one or more years as a date range, enable the corresponding check boxes.
# Filter: Numeric

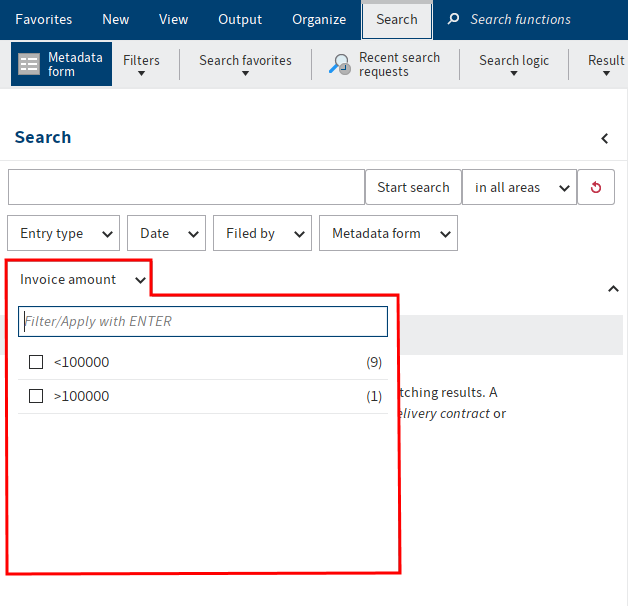

Metadata fields with the file type Number can be filtered by number values and number ranges.
Enter the desired number value or number range in the filter input field.
To enter a number range, you have the following options:
- <: To enter a number range less than a specific number, enter the less-than symbol (
<) and the number. - >: To enter a number range greater than a specific number, enter the greater-than symbol (
>) and the number. - ...: To enter a range between two numbers, separate these numbers with three periods (
...).
# Save search
You can also save searches as favorites. There are two ways to start a new search with a search favorite:
- From the Search favorites drop-down menu on the Search tab
- From the search favorite tile in My ELO
Search favorites are automatically saved in the Search favorites drop-down menu and as a tile. You can find the tile in the tile navigation of My ELO under Hidden tiles.
If you click a search favorite, the search term is applied to the search field. You can start a new search with the search favorite.
# Manage search favorites
Available in: Search work area > Ribbon > Search > Search favorites
Use this function to rename or delete a search favorite.
Use the arrow icons to change the order of the favorites in the drop-down menu.
Select the Delete button to delete the selected favorite. The favorite is initially marked red. The favorite is deleted once you select OK, closing the dialog box. If you close the dialog box with the Cancel button, the delete action is reversed.
# Recent search requests
ELO saves the ten most recent search requests. Click the search request to run the search again.
The search requests are saved when you close ELO.
The menu contains previous ELO iSearch requests and metadata search requests.
# Search metadata
Available in: Search work area > Ribbon > Search > Search logic
Keyboard shortcut: CTRL + F
This function enables you to search the fields of metadata forms.
In addition to using the ELO iSearch, ELO enables you to search the metadata using metadata forms. The metadata search allows you to search for specific metadata.
Information
If you want to use a metadata form for the search, your administrator first has to enable the corresponding setting.
The following options are available in the Search metadata dialog box:
# Form selection
All metadata forms that can be used as a search form are displayed in the Available forms area. Select the metadata form that you used to file the document you are searching for, e. g. Invoice. This limits the search to documents that have been assigned this metadata form.
Information
The Filter field enables the user to browse or filter the Available forms area.
# Dashboards

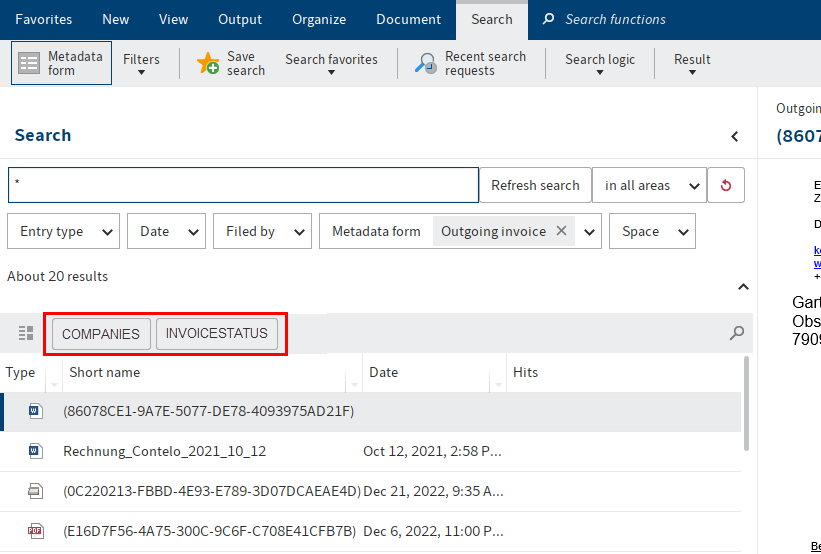

In the Search work area, buttons are available that allow you to launch dashboards after conducting a search with a form filter. These buttons are only displayed if dashboards have been configured for the corresponding metadata form.
Dashboards are created by the administrator. They can only be created with generation 2 metadata.

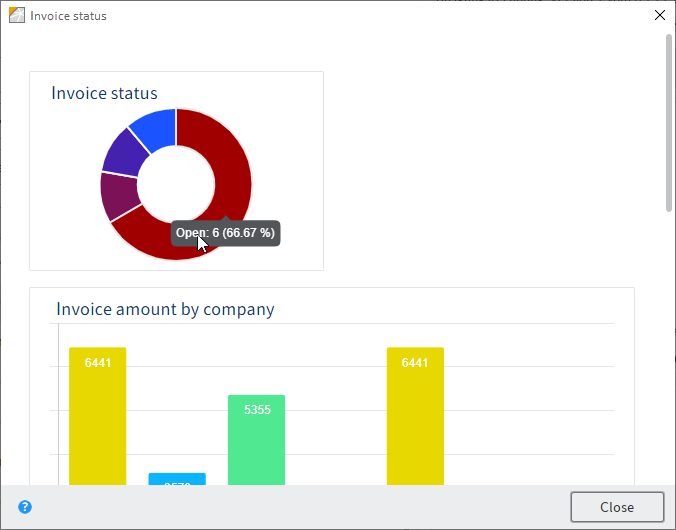

The dashboards allow you to visualize metadata of entries filed with the same metadata form in different ways. You can use bar charts, line charts, and doughnut charts.
You can view details about dashboards by clicking on them.
# Search fields
The search fields of the metadata form are shown on the corresponding tab. They correspond to the fields on a metadata form. The tabs and search fields that appear depend on the settings for the corresponding search form.
You can use the search fields to search specifically for the entries in these fields, such as for the Invoice number or the Filing date.
Information
When searching the metadata, it is possible to make entries to multiple fields of a search form. This allows you to create complex search queries.
For example, enter the status Unpaid in the Status field. ELO then searches exclusively in the Status input field of the documents that were filed with the Invoice metadata form.
Information
You can use keyword lists for entering search terms.
# Options
The Options tab provides additional options to restrict the search to specific criteria.
Personal identifier: Use this field to search the contents of the Personal identifier field. Enter the term you entered in the metadata. If you want to search all entries with a personal identifier, enter * to the search field.
End of deletion period: These two fields enable you to restrict the search to entries with a specific deletion period.
End of retention period: These two fields enable you to restrict the search to entries with a specific retention period.
Entry type: This enables you to restrict the search to specific entry types (e. g. folders, PDF, Word document).
Notes: Allows users to search for notes. Select the note type from the drop-down menu.
Search range: The options in the Search range define what is to be searched.
Search mode: The search mode is important when you use multiple fields for the search. Use the Search mode drop-down menu to specify whether the fields are linked with Boolean AND or with Boolean OR.
- AND: Only matches meeting all criteria are returned.
- OR: All matches meeting at least one of the criteria are returned.
Filed by: Allows users to restrict the search to entries by specific users.
File name: Allows users to restrict the search to entries with a specific file name.
# Start search
Select the OK button when you have completed the search form.
# Previous searches
If you have already carried out multiple search requests, selecting Enter metadata using the most recently saved/displayed entries [F3] (icon with green arrow) will open a list of previous search requests. Both the search term and the field used are displayed.
Select one of the listed entries followed by OK. The terms will then be transferred to the search form.
# AND/OR search in fields
To search fields using AND/OR links, the search terms must be placed in quotation marks. One of the operators (AND or OR) must be placed between the search terms.
# Current folder only
Available in: Search work area > Ribbon > Search > Search logic
Use this function to restrict the search to the folder selected last in the Repository work area. You need to select Start search again for the restrictions for a previously performed search to take effect. If you select the Current folder only option, the searched folder is displayed in a tooltip.
Please note
If the Current folder only option is enabled, the search can take a lot longer.
# Show deleted entries
Available in: Search work area > Ribbon > Search > Search logic
To search exclusively for deleted entries, enable the function Show deleted entries. If the Show deleted entries option is enabled (highlighted yellow), you will ONLY see deleted entries in the search results.
# Dynamic folder
Available in: Search work area > Ribbon > Search > Result
You can save a previous search request as a dynamic folder in the Repository work area. Only entries that match the search criteria are displayed in a dynamic folder. If a new document is filed to ELO that matches the search criteria, the new document is automatically displayed in the dynamic folder. For example, you can display all invoices with the status Unpaid in a dynamic folder.
Dynamic folders are saved in the Repository work area. You can save them to any location here.
# Remove from search results
Available in: Search work area > Ribbon > Search > Result
Use this function to remove individual entries from the list of search results. The entries remain unchanged in ELO. If you perform the same search again, then all matches will be displayed.
